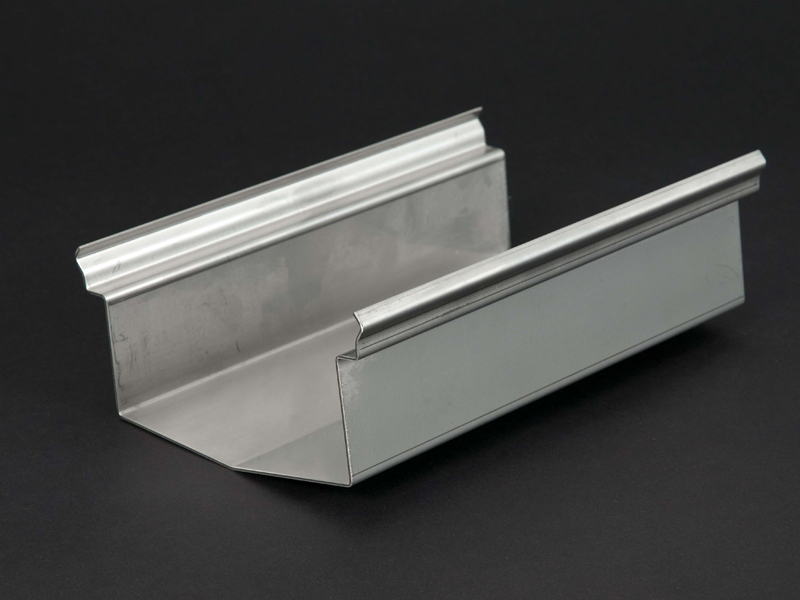

Click Drain® Joiner Sections

Seamless modular connection. Fast, rustproof assembly.

Joiner Sections are the heart of the Click Drain® modular system — snapping channels together precisely with no bolts, tools, or adhesives required. Proudly made in Australia, these stainless-steel joiners match our 100mm and 200mm channel systems and ensure durability in any plumbing or civil environment.

Key Features

🔗 Click-to-connect — no bolts or adhesives

🇦🇺 Made in Australia using premium stainless steel (304 or 316)

🧩 Compatible with 100mm and 200mm channels

⚡ Fast install — save time on site with tool-free assembly

🦿 Strong and corrosion-proof — ideal for harsh Aussie conditions

♻️ GreenTag certified & ASSDA accredited

🧼 Hygienic and easy to clean

✅ Complies with AS3996:2019 and AS4586 safety standards

Where It’s Used

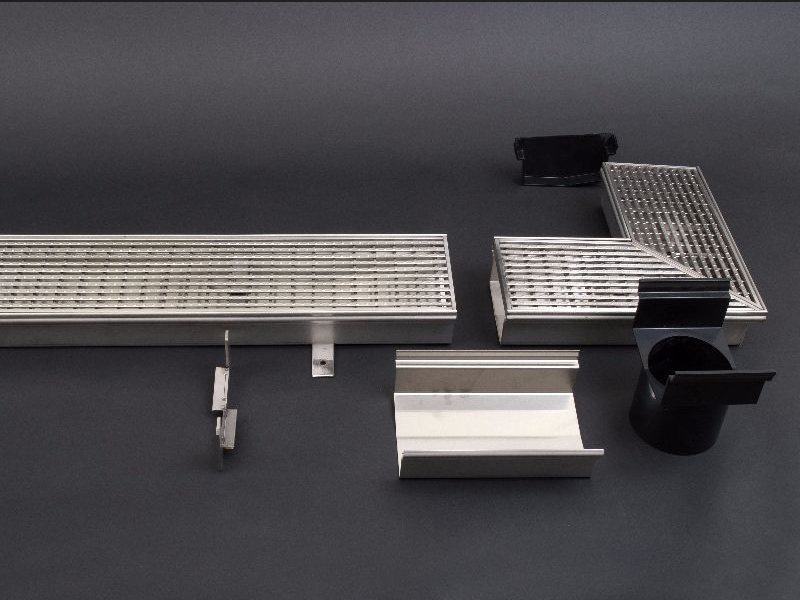

Long, uninterrupted trench drain runs
Directional changes using 45° or 90° angles
Bolt-free connections for quick installation
Heavy-duty, corrosion-resistant materials for outdoor or industrial use

Technical Specifications

Specification	100 Series Joiner	200 Series Joiner
Channel Width	100mm clear opening	200mm clear opening
Material	304 or 316 Stainless Steel	304 or 316 Stainless Steel
Installation Method	Click-fit (tool-free)	Click-fit (tool-free)
Compatibility	Standard & Sump Configurations	Standard & Sump Configurations
Environmental Rating	AS3996:2019 + AS4586 Compliant	AS3996:2019 + AS4586 Compliant
